Place of Origin:
Anhui, China
Brand Name:
ABG
Certification:
ISO9001、ISO14001、ISO45001、CQC
Brief Introduction

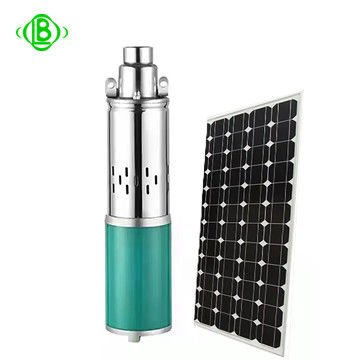

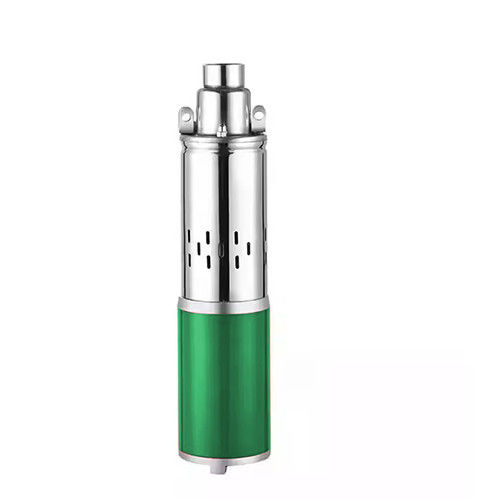

The solar water pump stainless steel submersible pump 1Hp 2-inch seawater is a submersible pump specially designed for seawater environments. It is made of stainless steel and has good corrosion resistance, capable of withstanding the erosion of salt and other chemical substances in seawater. The power of this pump is 1Hp (horsepower), approximately 0.746kW. It is equipped with 2-inch inlet and outlet pipe diameters. It can convert light energy into electrical energy through solar panels to drive the pump's operation. It is suitable for areas with abundant sunlight, remote regions without power supply, and where water needs to be drawn from seawater sources, such as Marine aquaculture and domestic water supply on islands.
Characteristics
Corrosion-resistant material: Stainless steel materials such as 304 and 316L are selected. Stainless steel has excellent compressive strength and outstanding corrosion resistance. It can resist the corrosive effect of salt, acid and alkali substances in seawater on the pump, which can extend the service life of the pump and ensure long-term stable operation in a humid and salty seawater environment.
Compatible with solar energy: Powered by solar energy and equipped with solar panels. Solar energy is a clean and environmentally friendly source. It is directly powered by solar energy without the need to lay cables. It operates under low-voltage direct current, which is energy-saving and safe. When there is sunlight, the water pump automatically draws water. When there is insufficient sunlight or no sunlight at all, it can be equipped with a corresponding power supply to ensure continuous water drawing and can work under a stable voltage.
The structural design is reasonable: It usually adopts an integral stainless steel structure. The motor and the water pump are directly connected as one and operate submerged in water. The structure is compact, small in size and beautiful in appearance. The vertical structure determines that it occupies a small installation area. This design operates smoothly with low noise, features high component concentricity, and has excellent sealing performance without leakage issues. The dynamic and static rings of mechanical seals are generally made of wear-resistant materials such as hard alloys to ensure no leakage of the medium.
It has excellent performance: It has a certain head and flow rate, which can meet the requirements of seawater lifting and transportation. It can pump seawater to a relatively far and high place, and is suitable for different seawater application scenarios, such as water circulation and oxygen supply in Marine aquaculture. Meanwhile, this pump is highly efficient, durable, safe and reliable, and easy to maintain.
It has a wide range of applications: it can be used in Marine aquaculture, water supply for daily life on islands, and some industrial production in coastal areas. As long as there is abundant sunlight and water needs to be obtained from Marine sources, it can be put to good use. In addition, it has strong adaptability to the installation environment, does not affect buildings or natural landscapes, and can significantly save project costs.
Performance
Pump size | 4 inches (about 100mm) |
Power range | 100W~1000W |
Head range | 0~100 meters |
Flow range | 0.5m³/h~20m³/h |
Working voltage | 12V~48V DC |
Water source | groundwater, rivers, lakes, etc. |
Protection level | IP65 (dustproof and waterproof) |
