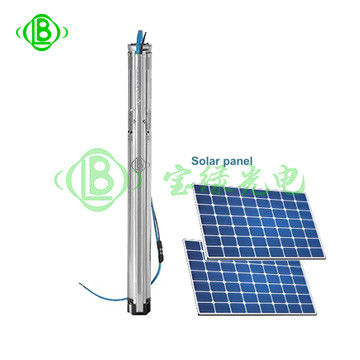

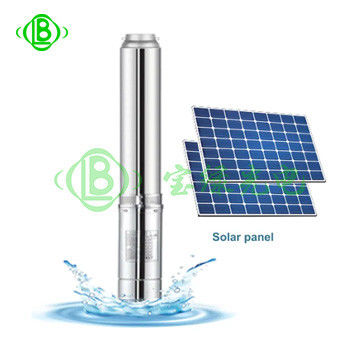

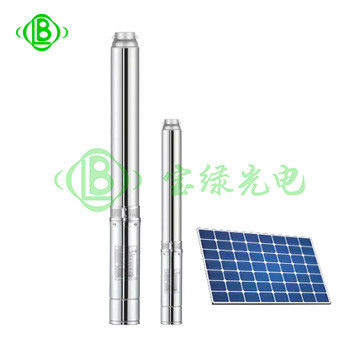

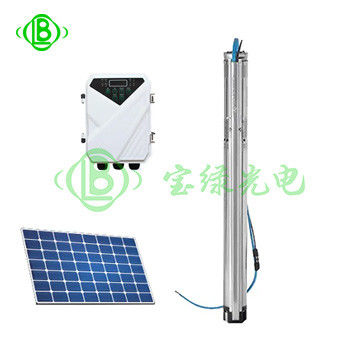

Agricultural Irrigation Solar Submersible Water Pump Easy Installation And Maintenance

Brief Introduction
The solar-powered deep well pump is a deep well water extraction equipment powered by a solar photovoltaic system. It mainly consists of solar panels, controllers, pump units (including motors), water delivery pipelines and other components. The core principle is to convert light energy into electrical energy through solar panels, driving the motor of the water pump to rotate the impeller, thereby lifting deep groundwater to the surface to meet the demands of agricultural irrigation, domestic water supply, livestock drinking water or industrial water supply, etc.

This system does not require an external power grid and features independent power supply, environmental friendliness, and easy installation. It is particularly suitable for areas with insufficient power grid coverage, remote power shortages, or high demands for clean energy, such as rural areas, pastoral areas, islands, and mountainous regions.
The characteristics of solar-powered deep water well pumps
First, the energy and environmental benefits are outstanding
Clean energy drive
With solar energy as the sole power source, it does not require diesel or grid power supply. During operation, it has zero carbon emissions, which is in line with the concept of sustainable development and can significantly reduce reliance on traditional energy sources and environmental pollution.
Long-term cost advantage
The initial investment includes solar modules, water pumps and supporting equipment. There is no fuel cost in the later stage, and the maintenance cost is low (mainly regular inspection and component replacement). The long-term economic efficiency is significantly better than that of diesel pumps or grid-driven pumps.
Second, the system has strong independence and adaptability
Operate out of the power grid
It is suitable for areas without or with insufficient electricity, solving the water supply problems in remote areas. It is especially suitable for scenarios such as farmland irrigation and water supply for fieldwork.
Withstand harsh environments
Pump units are usually made of stainless steel or anti-corrosion materials, which can adapt to the water quality conditions of deep Wells with high water pressure and high sediment content, and have strong corrosion resistance and wear resistance.
Solar modules have characteristics such as water resistance, wind and sand resistance, and resistance to high and low temperatures, and can work stably outdoors for a long time.
Iii. Intelligent and Automated Operation
Intelligent control
Equipped with a controller, it can achieve functions such as automatic start and stop, overvoltage/undervoltage protection, and motor overload protection, avoiding system failures and extending the service life of the equipment.
Some high-end systems support remote monitoring, which can monitor data such as water level, flow rate and power generation in real time through Internet of Things technology, facilitating user management and troubleshooting.
Adaptive adjustment
The power of the water pump can be automatically adjusted according to the intensity of light: it operates at full load when there is sufficient light, and reduces the speed or stops working when there is insufficient light to ensure efficient energy utilization.
Fourth, installation and maintenance are convenient
Modular installation
The system components are designed in a modular way, with a simple installation process. There is no need for complex civil engineering (only deep Wells need to be drilled and solar brackets fixed), and it can be quickly deployed, especially suitable for emergency water supply scenarios.
Low maintenance requirements
There are no mechanical transmission components of traditional diesel pumps (such as gears, couplings, etc.), resulting in less wear and a longer maintenance cycle. The motor is usually a brushless DC motor, which has low operating noise and high reliability.
Five. Wide range of application scenarios
In the agricultural sector: farmland irrigation, water supply for greenhouses, replacing traditional diesel irrigation pumps, reducing energy costs for farmers.
Domestic water supply: Provide daily drinking water for remote villages and pastures to solve the drinking water difficulties for both humans and livestock.
Industry and environmental protection: Water supply in mining areas, water extraction from sewage treatment systems, or groundwater extraction for ecological restoration projects.
Emergency disaster relief: In disasters such as earthquakes and floods, it serves as a temporary water supply device to ensure the safety of water supply in disaster-stricken areas.

Performance
