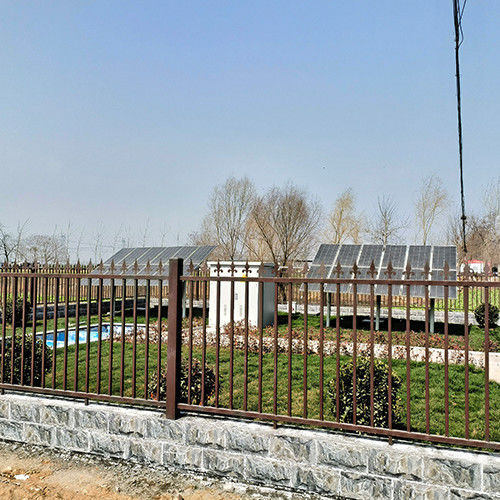

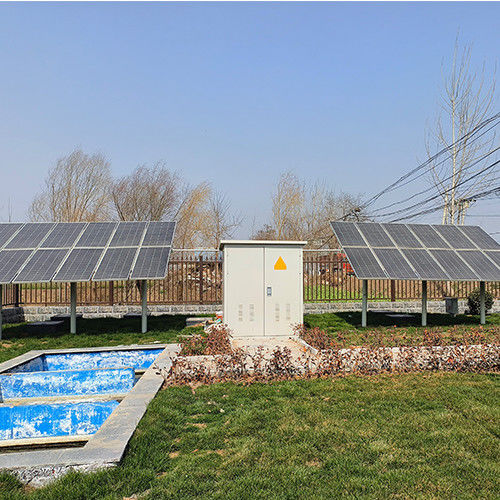

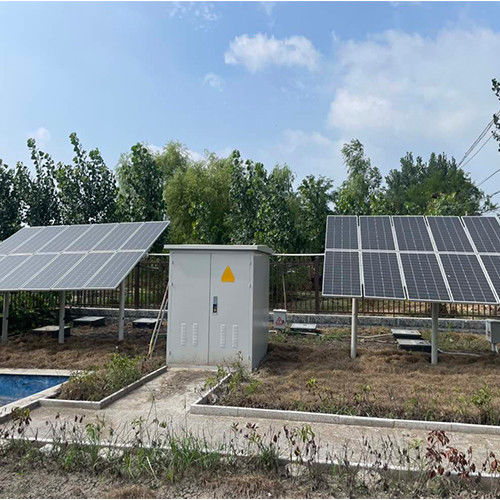

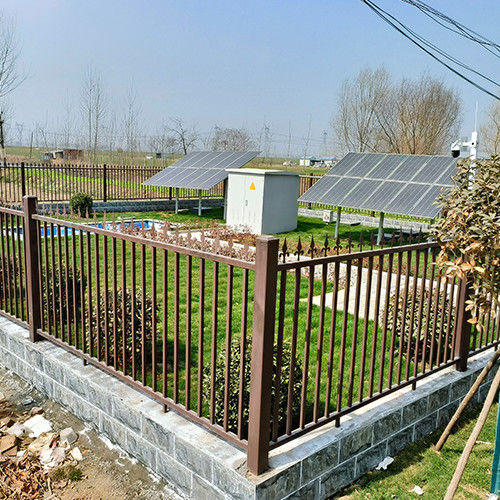

This solar-powered wastewater treatment system is specially designed for residential scenarios, with a treatment capacity of 50 cubic meters per day. It is an intelligent environmental protection equipment integrating solar energy technology and advanced wastewater treatment processes. The system as a whole adopts a modular design, occupies a small area, and can flexibly adapt to the installation requirements of different residential areas. The equipment casing is made of high-strength and corrosion-resistant materials, featuring excellent protective performance and the ability to adapt to various complex climatic conditions. The system is equipped with an automated control system that can monitor various parameters of wastewater treatment in real time, ensuring the stable operation of the treatment process and achieving unattended intelligent operation, providing users with convenient and efficient wastewater treatment solutions.
Equipment Characteristics
1.Environmentally friendly and energy-saving
The equipment takes solar energy as its main energy source, completely getting rid of the reliance on traditional fossil energy. It has zero carbon emissions during operation, effectively reducing energy consumption and environmental pollution. Compared with traditional wastewater treatment equipment, it can reduce a large amount of carbon dioxide emissions every year, significantly lower operating costs, and practice the concept of green environmental protection.
2. Efficient and reliable
By adopting advanced multi-stage treatment processes and integrating physical, chemical and biological treatment technologies, it has an efficient removal capacity for organic matter, suspended solids, heavy metals and other pollutants in wastewater, and the effluent quality stably meets the national discharge standards. The solar energy system is equipped with highly efficient solar collectors and energy storage devices to ensure that the equipment can operate continuously and stably under different lighting conditions, guaranteeing the continuity and reliability of wastewater treatment.
3. Intelligent and convenient
Equipped with an intelligent control system, users can view the equipment's operating status, treated water volume, water quality indicators and other information in real time through the mobile phone APP or the local control panel. The system is equipped with automatic fault diagnosis and alarm functions. Once an abnormal situation occurs, it will immediately notify the maintenance personnel, facilitating timely handling of the fault. In addition, the equipment is easy to operate and does not require professional personnel to be on duty. Users only need to carry out simple daily maintenance.
4. Strong adaptability
The system adopts a modular design, allowing for flexible adjustment of the treatment scale according to actual treatment needs. It is suitable for both small residential communities and large villa areas for wastewater treatment. The equipment has strong weather resistance. It can operate normally in severe weather conditions such as extreme cold, heat, wind, sand, rain and snow, and has a wide range of applications.
Working principle
1.The principle of solar energy utilization
Photothermal conversion: The system is equipped with highly efficient solar collectors, which convert solar energy into thermal energy through selective absorption coatings. This thermal energy can be used to heat wastewater, enhance the activity of microorganisms in the wastewater treatment process, and accelerate the reaction speed of biological treatment. It can also be used to heat air, providing a heat source for subsequent processes such as evaporation and concentration, and improving treatment efficiency.
Photovoltaic power generation: Solar panels convert solar energy into electrical energy and store it in energy storage devices such as batteries. This electrical energy provides power for the pumps, fans, agitators, control systems and other equipment of the entire wastewater treatment system, ensuring the normal operation of the equipment. When there is insufficient light, the electricity in the energy storage device can maintain the continuous operation of the equipment, ensuring the uninterrupted treatment of wastewater.
2. Principle of Wastewater Treatment
Pretreatment stage: The wastewater first enters the grid tank, where larger suspended solids and floating objects such as branches and plastic waste are intercepted and removed through the grid to prevent these debris from clogging the subsequent treatment equipment. Subsequently, the wastewater flows into the grit chamber, where the gravitational force causes the denser sand particles to settle down, further purifying the water quality.
Biological treatment stage: The pre-treated wastewater enters the biological reaction tank, where a large number of active microorganisms are cultivated. Under aerobic conditions, aerobic microorganisms decompose organic matter in wastewater into carbon dioxide and water through metabolic activities. Under anoxic or anaerobic conditions, anaerobic and anoxic microorganisms can remove nutrients such as nitrogen and phosphorus from wastewater, reducing the risk of water eutrophication.
Advanced treatment stage: The wastewater after biological treatment enters the advanced treatment unit, where residual pollutants are further removed through processes such as filtration, adsorption, and disinfection. For instance, the odor and residual organic matter in water can be removed through activated carbon adsorption. Ultraviolet or ozone disinfection is utilized to kill harmful microorganisms such as bacteria and viruses in water, ensuring that the effluent quality meets the discharge standards.
