Place of Origin:
Anhui, China
Brand Name:
ABG
Certification:
ISO9001、ISO14001、ISO45001、CQC

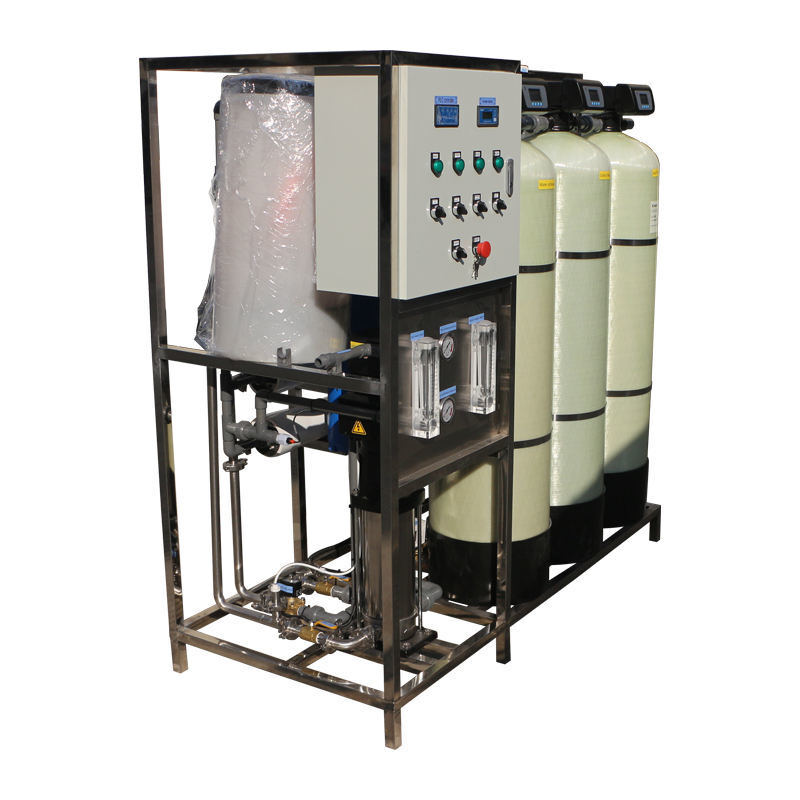

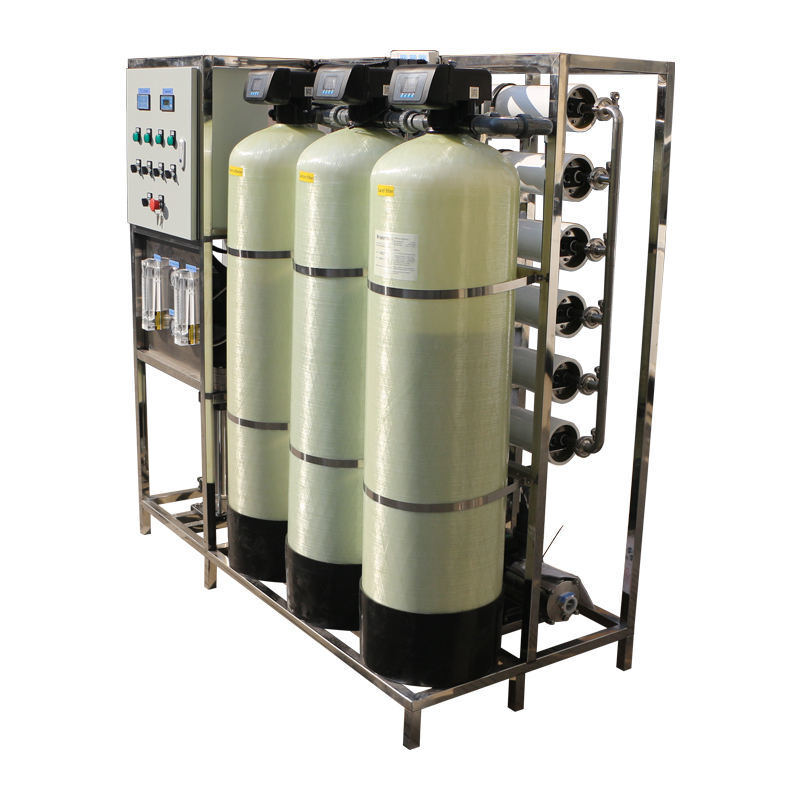

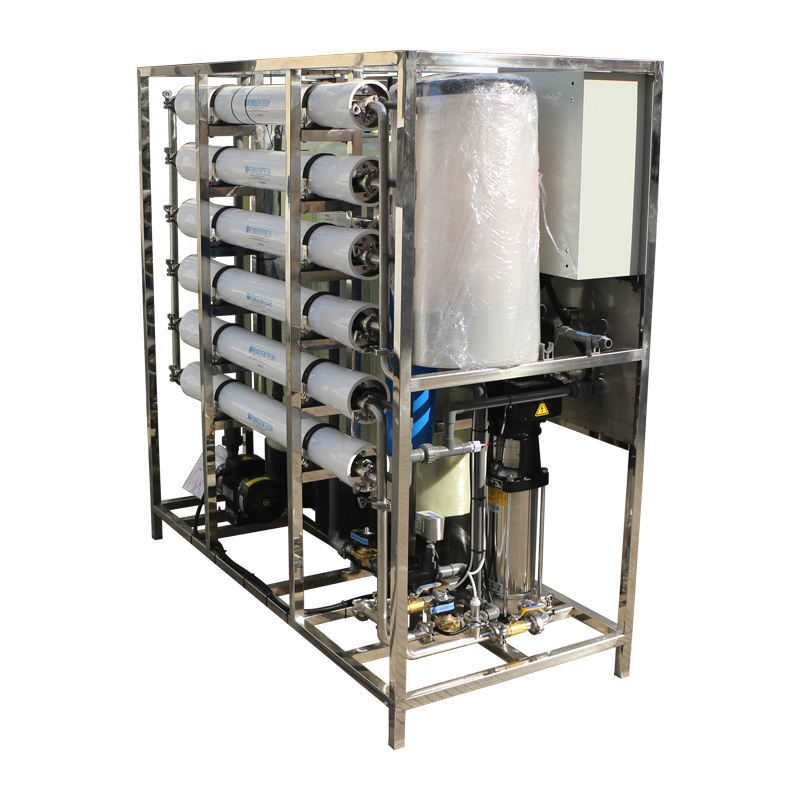

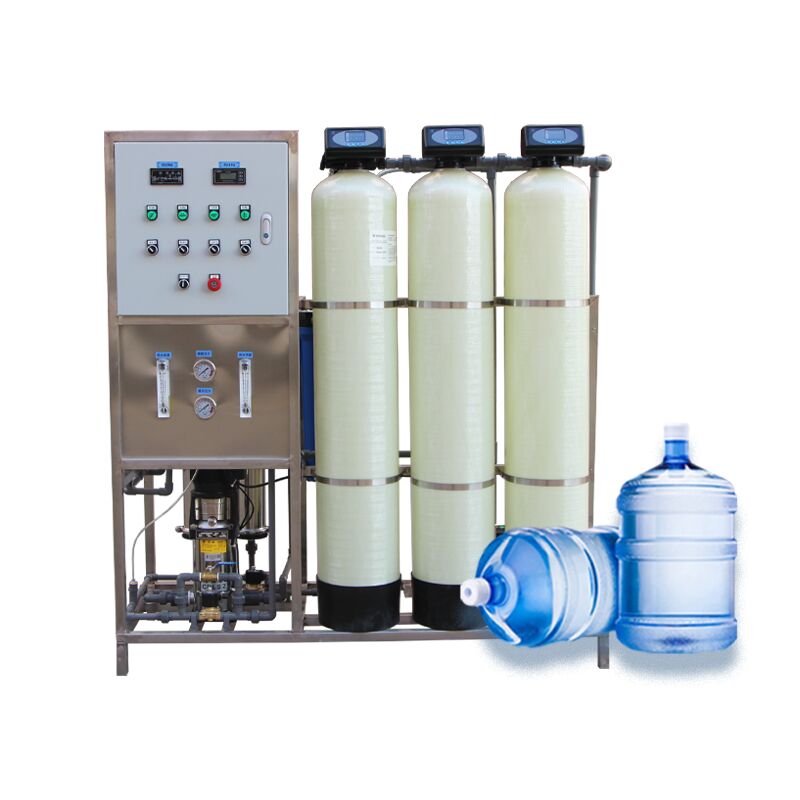

The reverse osmosis water filter process uses semi-permeable spiral-wound membranes to remove dissolved solids, organics, pyrogens, submicron colloids, and bacteria from water. Feed water passes through the membranes at a pressure of approximately 16 kg/cm²; water permeates the membrane pores to become purified water, while impurities are concentrated in the reject stream and flushed out. It can remove 90-99% of the total dissolved solids (TDS), 99% of the organics (including pyrogens), and 99% of all bacteria from the feed water.
| productivity | 1000L/Hour |
|---|---|
| Processing Type | Reverse Osmosis, Softening, desalination, Filtration, Ion Exchange |
| Voltage | 220 V |
| Power(W) | 7 |
| core components | Pump, PLC |
| machinery test report | Provided |
| warranty | 1 Year |
| weight (kg) | 100 |
| place of origin | Anhui, China |
| brand name | ABG |

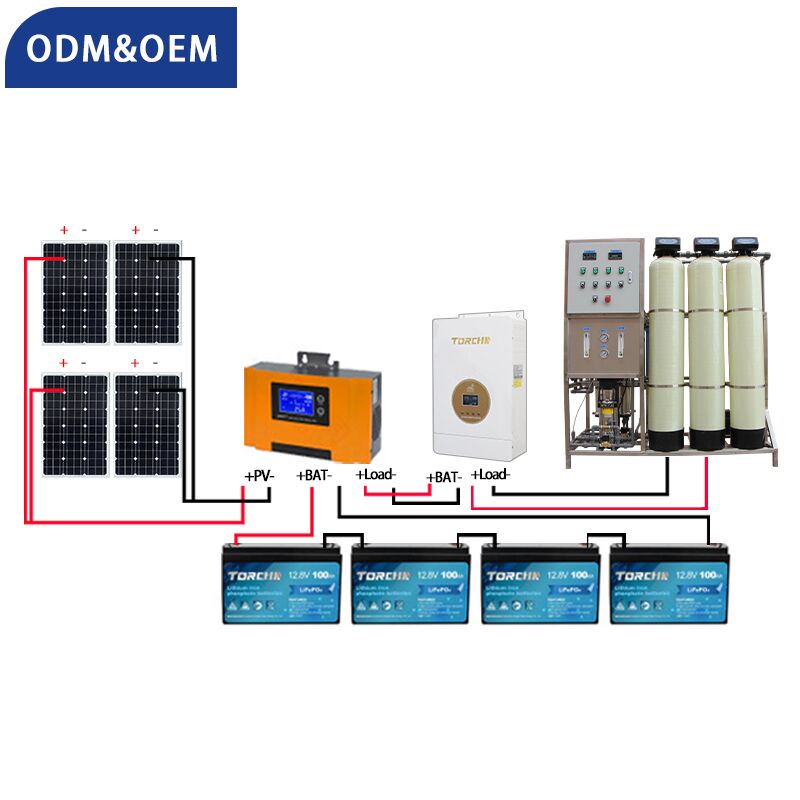

| Valve | Solar Seawater Desalination Machine |
| Recovery rate | 30-40% |
| Usage | Reverse Osmosis Water Treatment Industrial Filter |
| RO membrane | VONTRON |
| Pretreatment | Quartz sand/activated carbon/water softener/PP filter |
| Raw water pump | <36000ppm |
| Chemical dosing system | Anti-scale dosing |
| Pumps | CNP or Optinal |
| Power supply | 380V 50Hz 3phase(if special, can customize) |
| Optional parts | UV light/ozone generator/water softener |
| Product Name | Function |
|---|---|
| Raw Water Pump | Provide needed pressure for every pre-treatment filter. |
| Sand Filter | Remove the water contains sediment, manganese, rust, colloid material, and other particles. |
| Activated Carbon Filter | Remove the pigment,smell,organisms, reducing the residual value of water |
| Security Filter | Remove 5 micro particles |
| High Pressure Pump | Provide needed pressure for RO system |
| RO Membrane | Remove particles, colloids, organic impurities, heavy metal ions, bacteria, virus, heat source etc. harmful substances and 97% dissolved salts. |
| UV Sterilizer /Ozone generator | Kill bacterial in water. UV for direct drinking water. Ozone generator for bottle water |
