Place of Origin:
Anhui, China
Brand Name:
ABG
Certification:
ISO9001、ISO14001、ISO45001、CQC
Reverse Osmosis(RO) is a process that uses semi-permeable spiral wound membranes to separate and remove dissolved solids,organic,pyrogens,submicron colloidal matter,color,nitrate and bacteria from water. Feed water is delivered under pressure through the semi-permeable membrane,where water permeates the minute pores of the membrane and is delivered as purified water called permeate water.Impurities in the water are concentrated in the reject stream and flushed to the drain is called concentrate water.

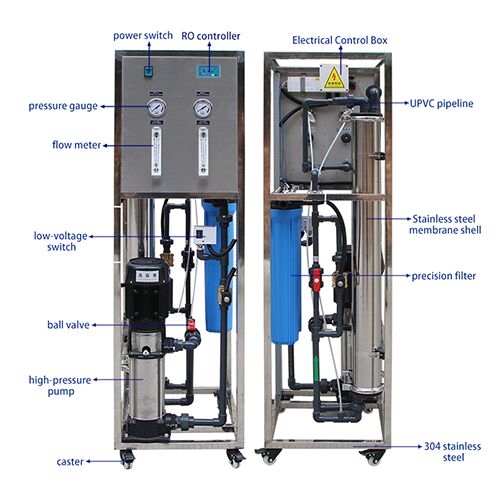

Raw water pump→ mechanical filter(quartz sand filter)→ activated carbon filter→ security filter→ high pressure pump →reverse osmosis system→ Ozone sterilizer (UV sterilizer).
| Processing Type | Reverse Osmosis |
|---|---|
| core components | Pressure Vessel, Pump |
| core components | Pressure Vessel, Pump |
| Voltage | 380V, 220V |
| Power | 3kw |
| Raw Water | TDS ≤ 1000PPM Working temperature: 0 ≤ 45°C Well water, tap water, seawater, salt water, brackish water |
| Produced water quality | Conductivity ＜10μs/cm Total organic carbon ≤ 0.5mg/L Microorganism ＜100cfu/ml |
| Desalination rate | 96-99% |
| Water recovery rate | 50-70% |
| Work pressure | Pretreatment: 0.2—0.4MPa, RO host: 0.8—1.6Mpa |
| Material | FRP tank, Stainless steel 304, PVC pipe, |
| weight (kg) | 200 |
| Process | Quartz sand filter → Activated carbon filter → Water softener → High pressure pump → Ro system → UV → Ozone generator |
The application scope of single-stage reverse osmosis equipment:drinking purified water,pure
water for beverage and food factory production,daily chemical production water,biopharmaceutical
water,medical device cleaning water,reagent preparation water,hospital dialysis water,oral liquid water, medical purified water,and electronic semiconductor production water
