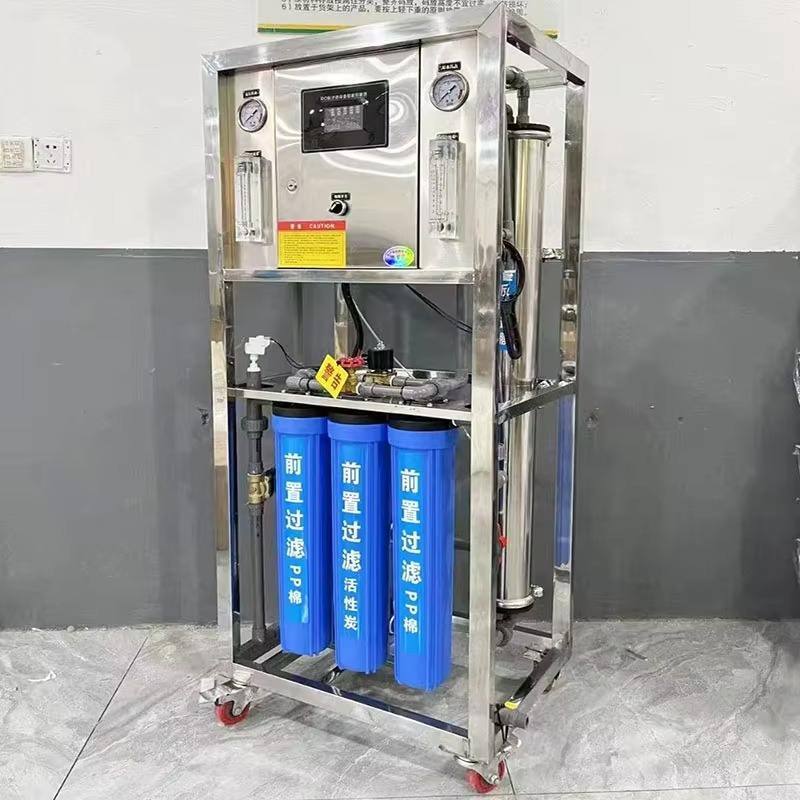

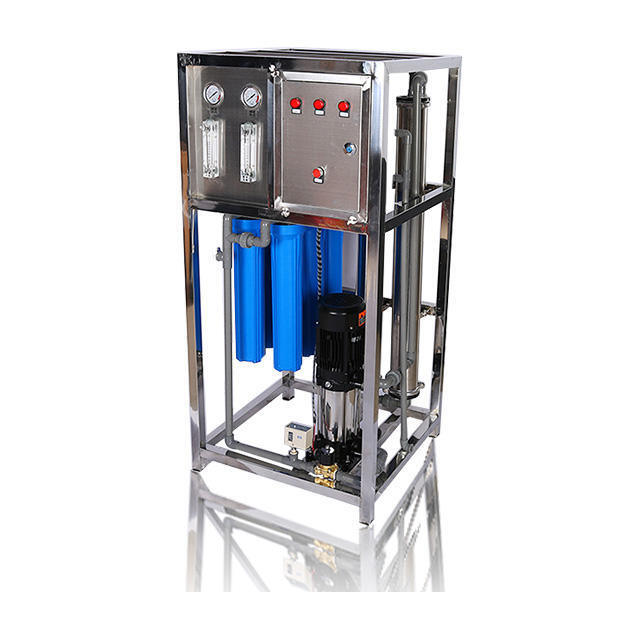

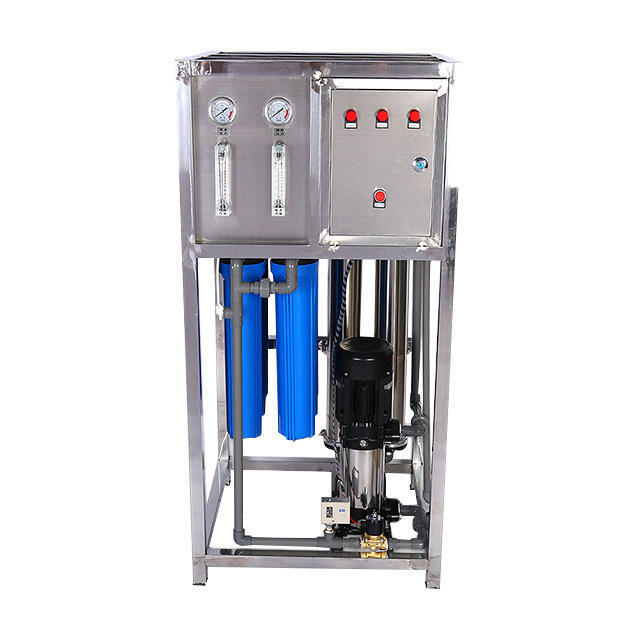

500LPH High-flow Reverse Osmosis Industrial Water Purifier Purification

Place of Origin:

Anhui, China

Brand Name:

ABG

Certification:

ISO9001、ISO14001、ISO45001、CQC

Chat Now

Request A Quote

Product Details

Processing Capacity:

More Than 97%

Productivity:

800L/Hour

Weight (kg):

380

Processing Type:

Reverse Osmosis

Power:

3.2kw

Voltage:

220V, 380V, 110V

Core Components:

PLC

Application:

Water Purifying

Processing:

Tap Water, Underground Water, River Water Etc.

Product Water:

Pure Drinking Water

Payment & Shipping Terms

Minimum Order Quantity

Price

USD8000-10000

Packaging Details

Wooden /Box

Delivery Time

7-15 Days

Payment Terms

L/C,T/T,Western Union

Supply Ability

100sets/month

250LPH 500LPH Ro Drinking Water Treatment Plant RO System Water Filter System Reverse Osmosis Plant

Chat Now

500LPH High-flow Reverse Osmosis Industrial Water Purifier Purification

Chat Now

500LPH High-flow Reverse Osmosis Industrial Water Purifier Purification

Chat Now

‌Solar-Powered Reverse Osmosis Smart Water Purification System

Chat Now

+86--15555130708

baolvphotoelectric@gmail.com

86-0551-62826800-(Work Time)

Chat Now

Product Description

Introduction

The Reverse Osmosis system (RO) includes household reverse osmosis system, commercial reverse osmosis system and industrial reverse osmosis system. This kind of industrial reverse osmosis system can purify different source water like tap water,rainwater, city water, underground water.

Key Features

Smart connectivity with mobile APP control.
Adaptive adjustment for energy optimization.
Real-time water quality monitoring for safety.
Expandable interfaces for future upgrades.

Specifications

Parameter	Specification
Raw Water Pump	Stainless steel multi-stage, flow rate 3.6 m³/h, head 32 m, power 0.37 kW
Tank	Φ205, FRP (Fiberglass Reinforced Plastic)
Quartz Sand	2–4 mesh, 4–6 mesh
Activated Carbon	600 iodine value
Filter Valve Head	F71 automatic filter valve, water production 2 m³/h
Precision Filter	20-inch × 1, engineering plastic, filtration accuracy 5 μm
High-pressure Pump	PLD2-9, flow rate 4 m³/h, head 105 m, power 1.5 kW, 220 V
Membrane Housing	4040 × 1 piece, 304 stainless steel, 300 PSI
Membrane	4040 × 2 pieces, salt rejection ≥ 98%
Electrical Control	Standard relay control, optional PLC control
Weight	≈ 200 kg
Power	1.8 kW
